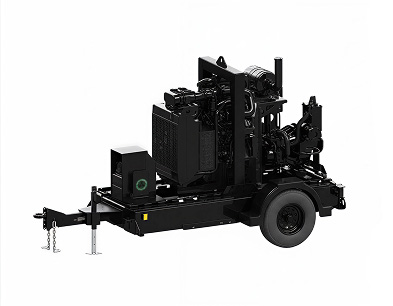

HH63

The 6” x 3” high head pump is designed for applications requiring significant discharge pressure with controlled flow rates. It is ideal for bypass, industrial transfer, and dewatering operations where high elevation or long discharge distances are critical.

  • High head hydraulic design for pressure-intensive applications
  • Enclosed impeller for efficient flow-to-head performance
  • Mechanically driven diaphragm-style vacuum priming system
  • Indefinite run-dry capability for operational protection
  • Diesel-driven system (John Deere 4045 platform)
  • Auto-start controls with integrated monitoring
  • Heavy-duty ductile iron construction
  • Designed for continuous-duty operation
  • Reliable performance in demanding jobsite environments
  • Pump Type: Diesel-driven centrifugal, self-priming
  • Pump Size: 6” x 3”
  • Impeller Diameter: 17”
  • Impeller Type: Enclosed
  • Max Operating Temperature: 200 °F
  • Max Operating Pressure: 260 psi
  • Priming System: Mechanically driven diaphragm vacuum pump (50 CFM)
  • Priming Chamber: Positive sealing air separation with stainless steel components
  • Discharge Check Valve: Swing type, ductile iron with nitrile disc
  • Run Dry System: Oil-lubricated mechanical seal for dry-run capability
  • Engine Make: John Deere 4045HFC06
  • Engine Power: 142 – 173 HP
  • Fuel Consumption: 7.03 GPH @ 1,800 RPM
  • Fuel Capacity: 135 gallons
  • Control Panel: LOFA CP900
  • Operating Speed: 1,200 – 2,100 RPM
  • Weight: 5,690 – 6,649 lbs
  • Material – Impeller: CA6NM Stainless Steel
  • Material – Shaft: 17-4 PH Stainless Steel
  • Material – Wear Ring: ASTM A48 Class 40 Gray Iron
  • Material – Volute: Ductile Iron ASTM A536 65-45-12
  • Mechanical Seal: Silicon Carbide rotating and Tungsten Carbide stationary
