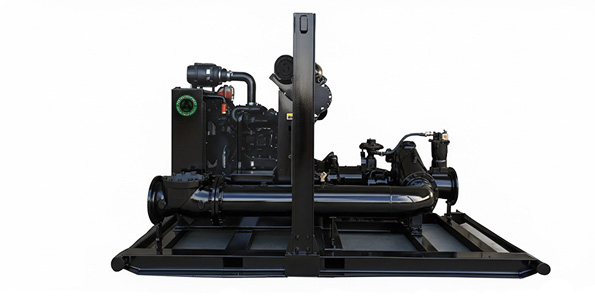

HF14

Engineered for high-volume dewatering and bypass applications, the 14” high flow pump delivers reliable performance with strong head capability. It is built for continuous operation in large-scale infrastructure and industrial environments.
  • High-capacity enclosed impeller for efficient flow
  • Vacuum-assisted priming system with automatic operation
  • Indefinite run-dry capability for increased reliability
  • Diesel-driven (John Deere engine platform)
  • Heavy-duty steel frame and structural components
  • Advanced sealing system for dry-run protection
  • Integrated control panel with monitoring instrumentation
  • Trailer or skid-mounted configurations available
  • Designed for continuous high-demand operation
  • Pump Type: Diesel-driven centrifugal, self-priming
  • Pump Size: 14” x 14”
  • Impeller Diameter: 17.5”
  • Impeller Type: Enclosed
  • Max Operating Temperature: 200 °F
  • Max Operating Pressure: 150 psi
  • Priming System: Diaphragm-style vacuum pump, 50 CFM
  • Engine Make: John Deere 6090
  • Engine Power: ~325 HP
  • Fuel Consumption: ~16 GPH @ max RPM
  • Fuel Capacity: External fuel cell
  • Control Panel: Controls Inc CX
  • Material – Impeller: CA6NM Stainless Steel
  • Material – Shaft: 17-4PH Stainless Steel
  • Material – Volute: Cast / Ductile Iron
  • Mechanical Seal: Tungsten / Silicon Carbide
