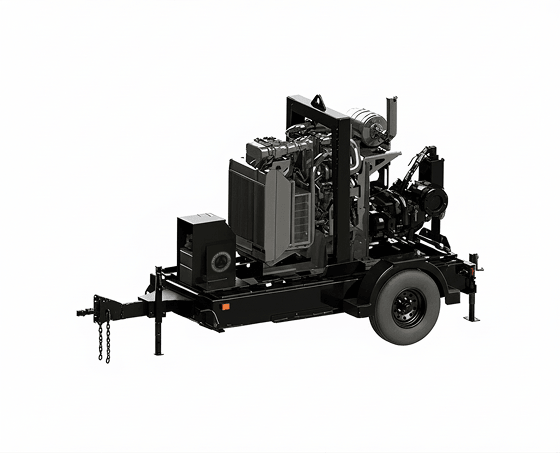

super 6

The “Super” 6” medium head pump delivers enhanced head capability over standard units, making it ideal for applications requiring higher discharge pressures and extended pumping distances. It balances flow and pressure for reliable performance across demanding jobsite conditions.

  • Medium head optimized hydraulic design
  • Enclosed impeller for efficient flow-to-head performance
  • Mechanically driven vacuum priming system
  • Indefinite run-dry capability
  • Diesel-driven system (John Deere 4045 platform)
  • Auto-start control system with monitoring instrumentation
  • Heavy-duty ductile iron construction
  • Designed for continuous duty operation
  • Reliable performance across varying load conditions
  • Pump Type: Diesel-driven centrifugal, self-priming
  • Pump Size: 6” x 6”
  • Impeller Diameter: 14”
  • Impeller Type: Enclosed
  • Max OperatingTemperature: 200 °F
  • Max Operating Pressure: 260 psi
  • Priming System: Mechanically driven diaphragm vacuum pump (50 CFM)
  • Engine Make: John Deere 4045HFC06
  • Engine Power: 142 – 173 HP
  • Fuel Consumption: ~7.0 GPH
  • Fuel Capacity: ~135 gallons
  • Control Panel: LOFA CP900
  • Operating Speed: 1,200 – 2,000 RPM
  • Weight: ~5,560 – 6,520 lbs
  • Material – Impeller: CA6NM Stainless Steel
  • Material – Shaft: 17-4 PH Stainless Steel
  • Material – Wear Ring: ASTM A48 Class 40 Gray Iron
  • Material – Volute: Ductile Iron ASTM A536 65-45-12
  • Mechanical Seal: Silicon Carbide / Tungsten Carbide
